WREXXXS series is a module power supply with wide voltage input, 3KVAC isolated regulated dual outputs, and self-recovery overload and short-circuit protection at the outputs, which is specialized for electric power and medical instruments and meters. The output power is 0.5W-3W, and the voltage will not rise when no load.

Typical applications of DC-DC power modules (modular power supply), voltage polarity conversion, selection of external filter capacitors, overload and short-circuit protection circuits and series-parallel use are described in detail. Correct use can extend the service life of the product to avoid interference, overheating, self-excitation, poor start-up and other phenomena and irreparable damage.

Technical parameters:

●Output power (W): 0.2/0.5/ 0.75/1/2

Nominal input voltage (V): 3.3/5/9/12/15/24

Nominal output voltage (V): ±5/±9/±12/±15

●Isolation Voltage: 3000VAC, Output Accuracy: < ±2

●10Pin SIP flame retardant package

●Ripple/noise (20MHZ bandwidth) < 50mVp-p

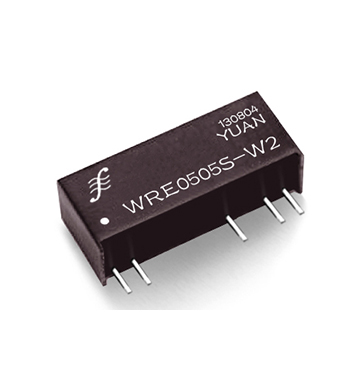

Fixed Voltage Input 3KV Isolated Dual Output with Regulated Overload Protection Isolated Power Supply: WRE-1W/2W Series
