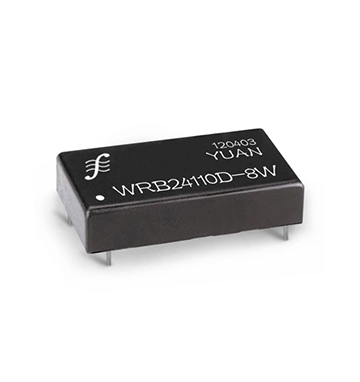

Wide Voltage Input Isolated Regulated Output Power Modules (DW/WRA/WRB/DKW Series)

<
>

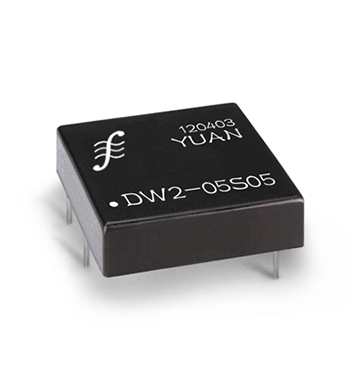

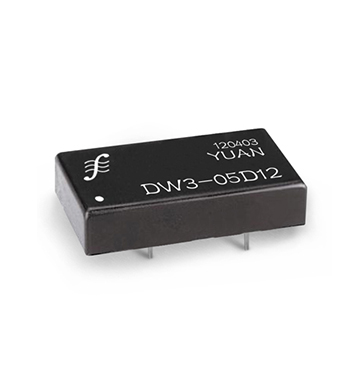

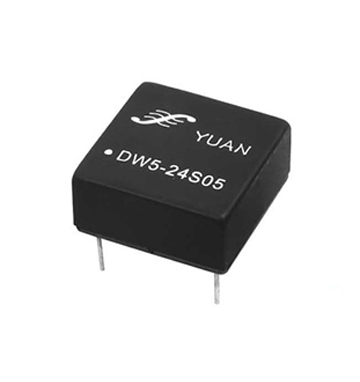

  • 27、DW Series 1KV Isolated 2:1 Wide Voltage Input Single and Dual Regulated Output Industrial System DC-DC Power Module

  • DW-xxSxx (S: single output) series and DW-xxDxx (D: dual output) series module power supply is a wide input voltage range, the output power 6W ~ 12W isolated DC-DC converter. Input voltage range commonly used specifications: 4.5~9.0V, 9~18V, 18~36V, 36~72V, 70~150VDC,; the output is divided into single (S), dual (D) two. High voltage regulation accuracy, high efficiency, high reliability, very low ripple and noise make it suitable for the distribution of power supply system of board supply. Mainly used in program-controlled switches, ATM switches, PBX, ISDN, cellular communication systems and so on.

1KV Isolated 2:1 Wide Voltage Input Single and Dual Regulated Output Power Module: DW Series



         DW-xxSxx (S: single output) series and DW-xxDxx (D: dual output) series module power supply is a wide input voltage range, the output power 6W ~ 12W isolated DC-DC converter. Input voltage range commonly used specifications: 4.5~9.0V, 9~18V, 18~36V, 36~72V, 70~150VDC,; the output is divided into single (S), dual (D) two. High voltage regulation accuracy, high efficiency, high reliability, very low ripple and noise make it suitable for the distribution of power supply system of board supply. Mainly used in program-controlled switches, ATM switches, PBX, ISDN, cellular communication systems and so on.

       (2:1) Wide voltage input means that the input voltage can be allowed to vary within a wide specified range (e.g., 4.5~9.0V, 9~18V, 18~36VDC, etc.). Modular power supply with wide voltage input adopts PWM control mode, which is characterized by high power density, high output power and wide application range.


      Typical applications of DC-DC power modules (modular power supply), voltage polarity conversion, selection of external filter capacitors, overload and short-circuit protection circuits and series-parallel use are described in detail. Correct use can extend the service life of the product to avoid interference, overheating, self-excitation, poor start-up and other phenomena and irreparable damage.



Technical Parameters



Input Voltage RangeProtective propertiesOperating Temperature Rangerelative humidity

Output Characteristics

Technical indicators

Technical Parameters

test condition

Voltage stabilization accuracy

Master:2.0%max,

From road:3.0%max

0%~100%Load Range

linear rate of adjustment

Master:0.5%max

From road:0.8%max

fully loaded

Load Adjustment Ratio

Master:1.0%max

From road:1.2%max

0%~100% Load Range

overcurrent protection point

110%


Ripple and Noise

Vo≤5V, Vp-pmax≤50mV

Vo≥48V, Vp-pmax≤200mV

Other Outputs,Vp-pmax≤100mVp-p

20MHz bandwidths

Dynamic Response Speed

150us

25%Load ~ Full Load

Start-up delay time

500ms


Input Characteristics

(5VDC)4.5—9.0VDC



(12VDC)9—18VDC



(24VDC)18—36VDC



(48VDC)36—72VDC



(110VDC)70—150VDC



Linear high speed

0.5%

Low-end ~ High-end

General Characteristics

switching frequency

300KHZ

typical value

conversion efficiency

See Model Selection Chart


Over-current short-circuit protection



Isolated Voltage

1500VDC

Between input and output

Mean Time Between Failure (MTBF)

1000000 hours


temperature coefficient

0.02%/℃


Environmental Characterization

-25℃~+60℃



Storage humidity

-45℃~+105℃


10%~90%



Cooling method

natural cooling





Product Selection Example


1, Input voltage range: 18-36VDC, Output voltage: dual positive and negative 12VDC, Power: 10W


          Product Model: DW10-24D12





2、Input voltage range: 36-72VDC, Output voltage: single 5VDC, Power: 12W.


        Product Model:DW12-48S05




Common Product Models



Input Voltage(V)

output voltage

(V)

Output Current

(A)

efficiency

(%)

Model number

Outputs Number of channels

nominal value

Input Range

5

4.5~9.0

+12

0.5

80

DW6-05S12

Single

12

9.0~18

+5.0

+1.6

77

DW8-12S05

Single

24

18~36

+5.0

+2.0

79

DW10-24S05

Single

24

18~36

+12.0

+0.80

86

DW10-24S12

Single

24

18~36

+15.0

+0.66

86

DW10-24S15

Single

24

18~36

±12.0

±0.40

86

DW10-24D12

dual

24

18~36

±15.0

±0.33

86

DW10-24D15

dual

48

36~72

+5.0

+2.0

83

DW10-48S05

Single

48

36~72

+12.0

+1.0

87

DW12-48S12

Single

48

36~72

+15.0

+0.80

87

DW12-48S15

Single

48

36~72

±5.0

±1.0

86

DW10-48D05

dual

48

36~72

±12.0

±0.50

87

DW12-48D12

dual

48

36~72

±15.0

±0.40

87

DW12-48D15

dual

110

70~150

+15.0

+0.20

87

DW3-110S15

Single

Note: The above are examples of several commonly used models. According to customer requirements, we can provide other kinds of input and output parameters of the modular power supply.
